220V Single Acting Electric Hydraulic Pump EHPM-70ZS

Category:

Hydraulic Pumps

Telephone: +86-576-87440911

Commodity name： 220V Single Acting Electric Hydraulic Pump EHPM-70ZS
Commodity ID： 1483428300402085888

Message

Description

Overview

Essential details

Warranty:: 1 Year

Customized support:: OEM

Place of Origin:: Zhejiang, China

Mini Stye:: Aluminium Alloy Tank

Power Source:: 220V 50HZ

Single Acting:: One Oil Port

Rated Pressure:: 700 Bar

Hydraulic Oil:: 32#

Hand Switch:: Control Pump

Pressure Gauge:: Indicate working pressure

Oil Level Window:: Inspect Remaining Oil

Electric Wire:: 3 Meter

Package:: Wooden Case

Supply Ability

Supply Ability: 300 Piece/Pieces per Month

Packaging & delivery

Packaging Details: Wooden Case

Port: Ningbo or Shanghai

Picture Example:

Lead time:

Quantity(pieces)	1 - 1	>1
Lead time (days)	10	To be negotiated

Product Description

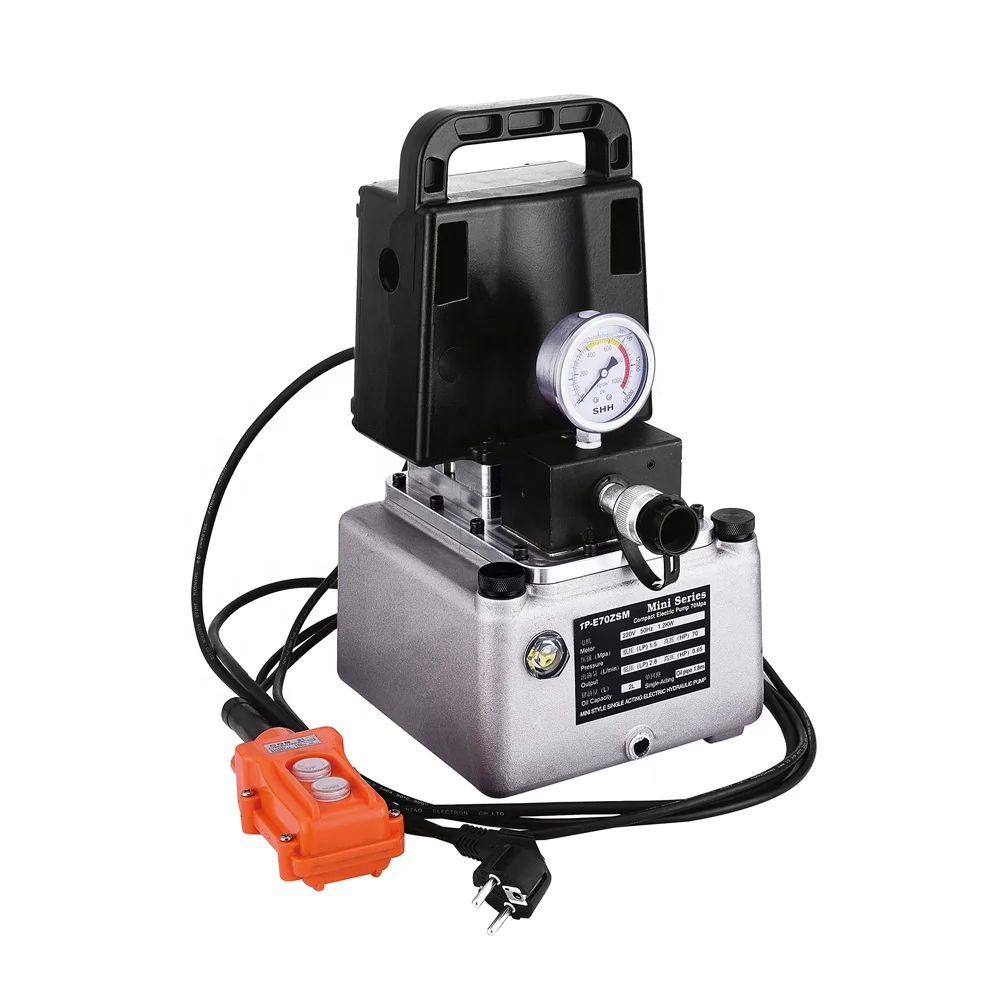

Tool Name	Mini Style Electric Hydraulic Pump EHPM-70ZS
Power Source	220V 50Hz (With 3mm Wire and Standard European Plug)
Single Acting	With one oil port, capable of working with cutting head, punching tool, crimping head etc. that do not require "Hold Pressure"
Rated pressure	700Bar (can be adjusted in workshop before delivery for specific application)
Oil Capacity	2L (#32Hydraulic Oil is suggested)
Automatic Retraction	Automatically Release pressure, return oil when release "ON" button
Oil Tank	Aluminium Alloy Material for light weight

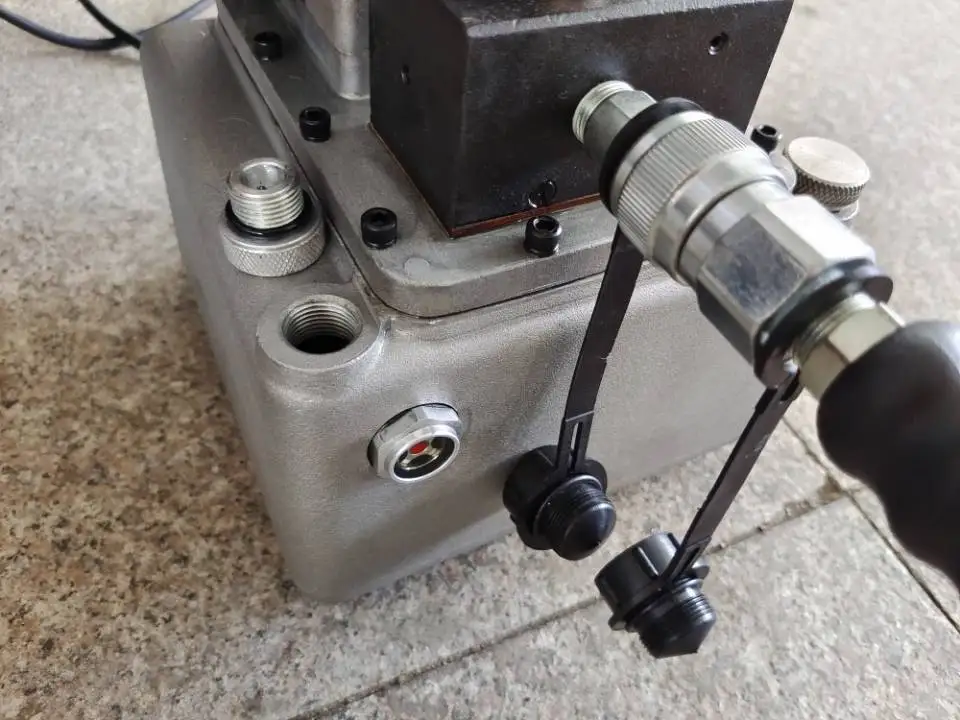

Standard Oil Pipe	1.8m (with half quick coupler)

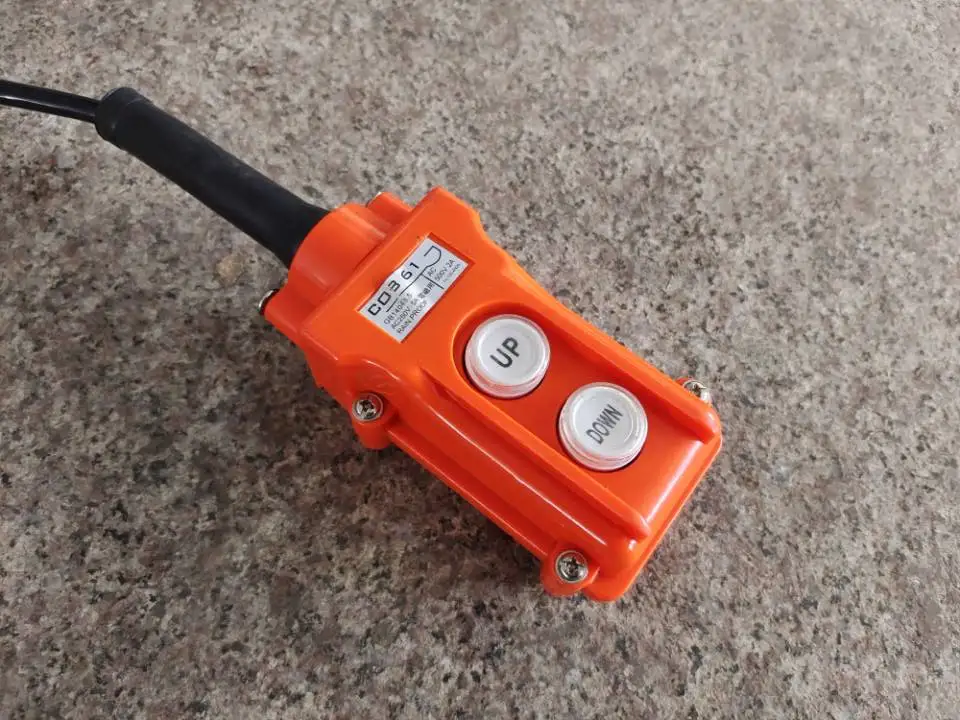

Hand Controller	Press and Release "ON" button to Activate and Stop Motor

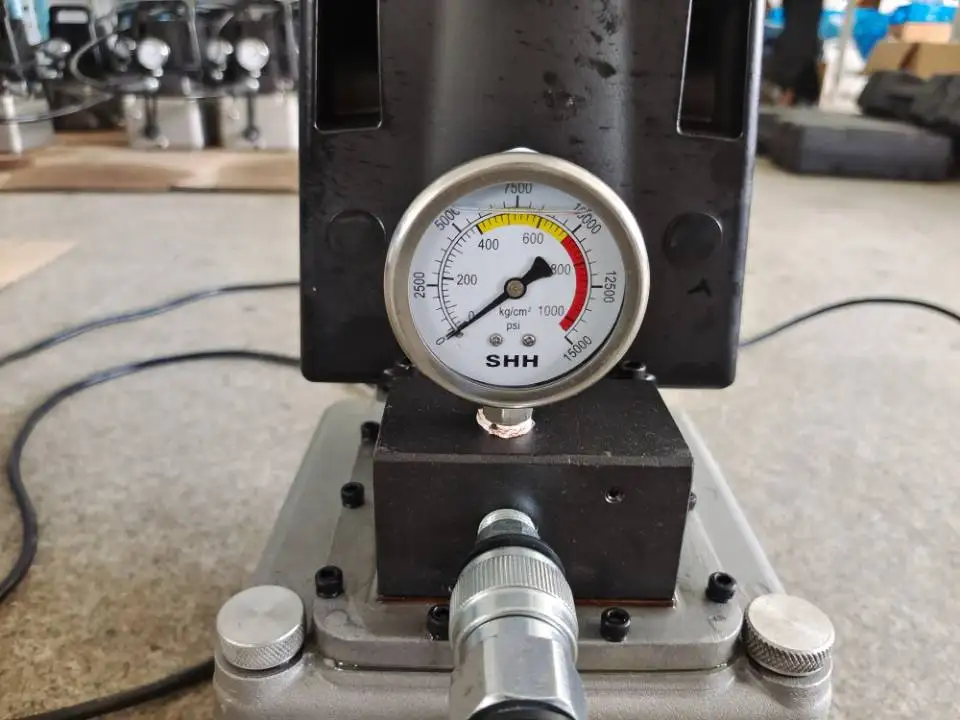

Pressure Gauge	Inspect working pressure for safety operation
Inspection Window	Check Oil Level before opration

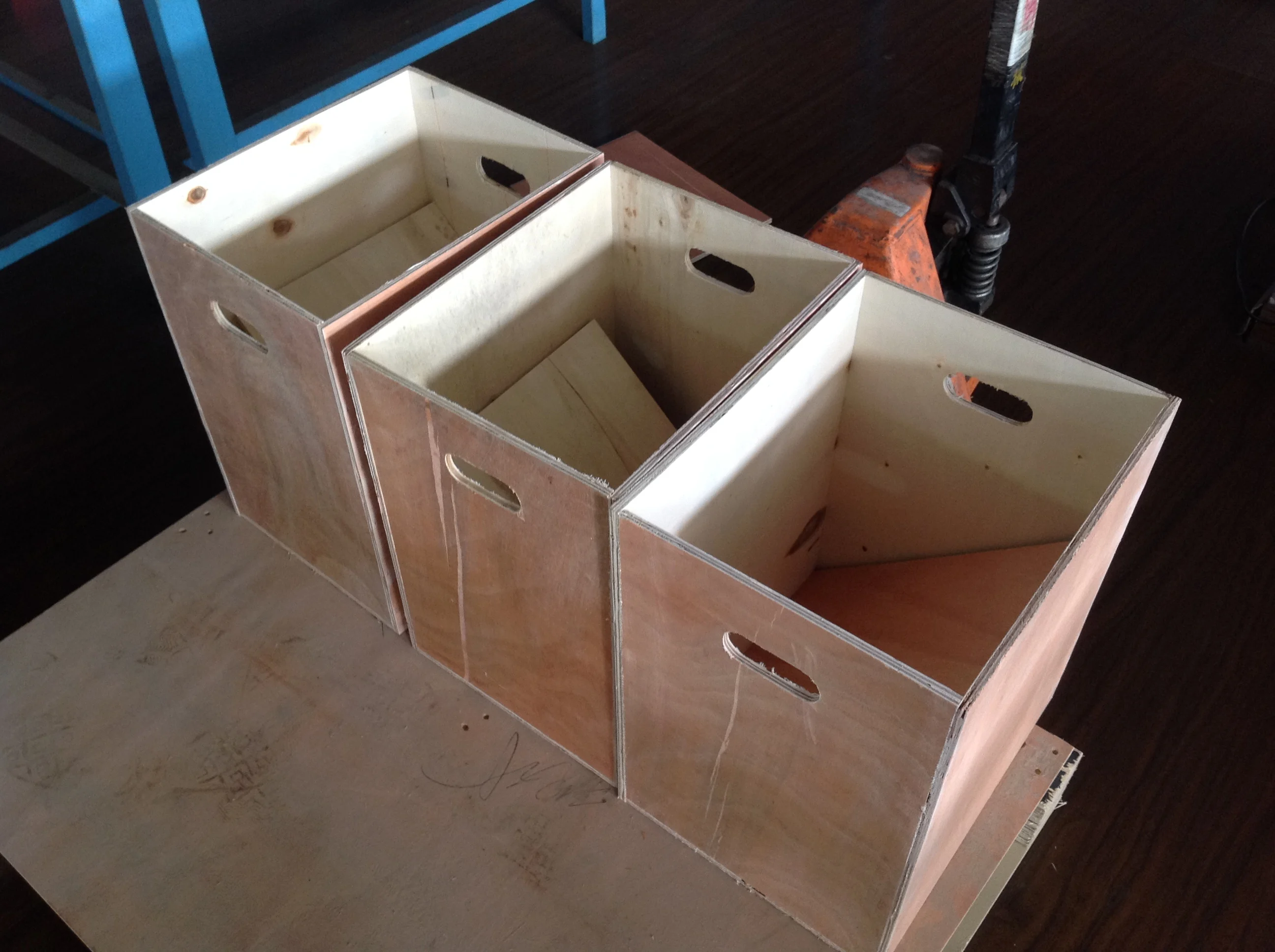

Package	Wooden Case

Application Case

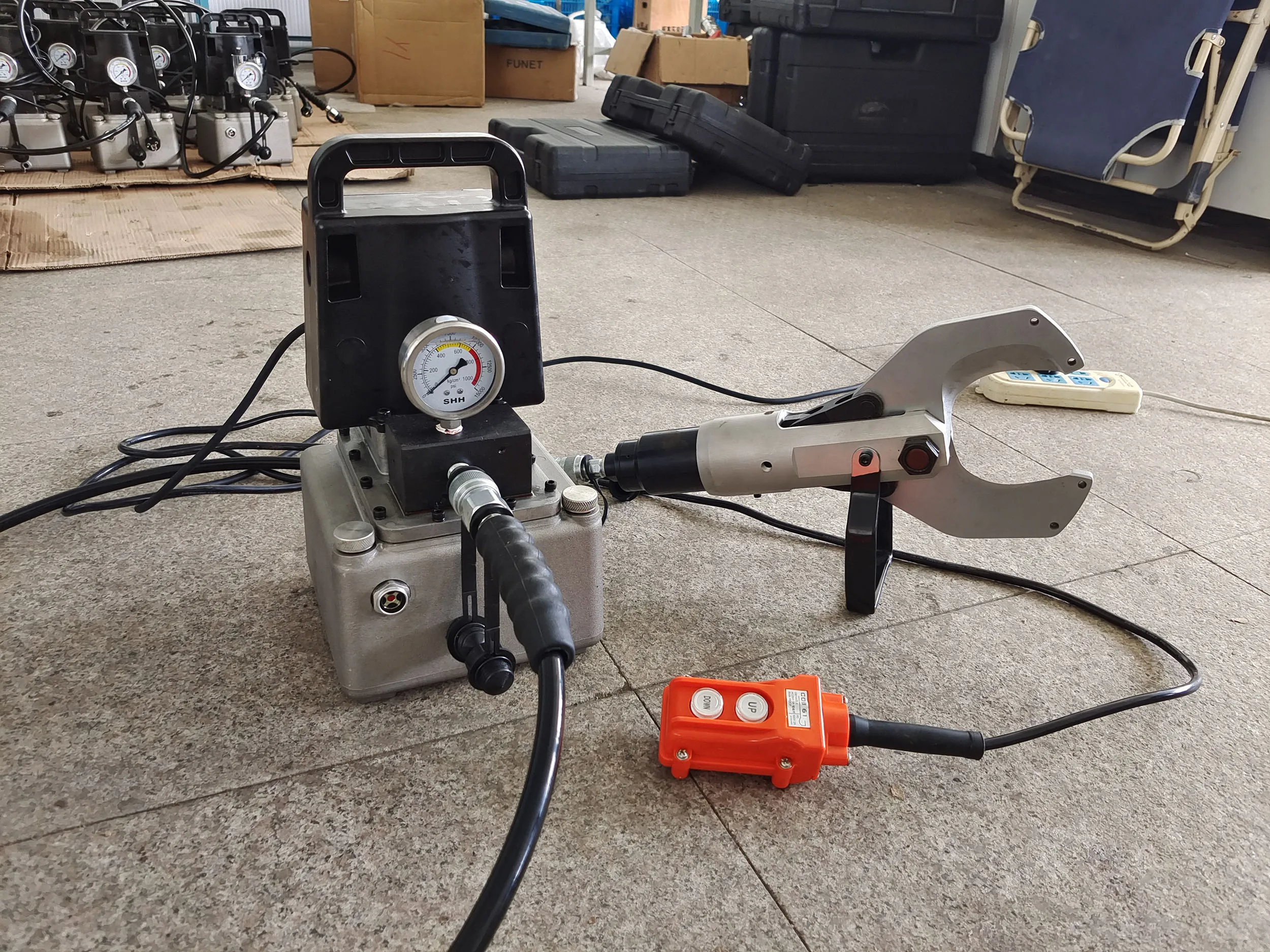

After connect electric hydraulic pump EHP-70ZS with cutting head CPC-85KH, press "ON" button on hand controller to activate Motor. Cutting can be finished with 10 seconds.

Note that when release "ON" button, the oil will automatically return back to oil tank, make ram retract, it means that the hydraulic pump EHPM-70ZS is not able to hold pressure, it is ideal for the application that do not need to hold pressure: cutting, punching, bending, etc.

For Mini electric pump that can hold pressure, please refer to the other Model: EHPM-70ZSB, EHP-70ZSB
